sd::PipelineFactory Class Reference

Creates and owns graphics pipelines. Handles cleanup on destruction. More...

#include <PipelineFactory.hpp>

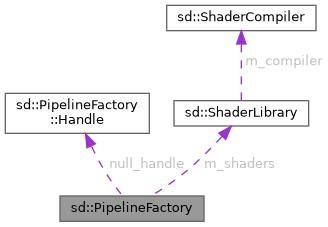

Collaboration diagram for sd::PipelineFactory:

Classes
struct	Handle
struct	PipelineDesc
struct	PipelineEntry

Public Member Functions
	PipelineFactory (VkDevice device, ShaderLibrary &shaders)
	~PipelineFactory ()
Handle	create_graphics_pipeline (const PipelineDesc &desc, VkPipelineLayout layout)
VkPipeline	get_pipeline (Handle handle) const
bool	is_valid (Handle handle) const
	Check if a handle is valid (exists and generation matches).
void	destroy_pipeline (Handle handle)
VkPipelineLayout	create_push_constant_layout (VkShaderStageFlags stages, u32 size)
std::vector< std::pair< std::string, std::string > >	recreate_all_pipelines ()
	PipelineFactory (const PipelineFactory &)=delete
PipelineFactory &	operator= (const PipelineFactory &)=delete

Static Public Attributes
static constexpr Handle	null_handle {0, 0}

Private Member Functions
VkResult	create_pipeline_instance (const PipelineDesc &desc, vk::PipelineLayout layout, vk::UniquePipeline *pipeline)

Private Attributes
vk::Device	m_device
ShaderLibrary &	m_shaders
vk::UniquePipelineCache	m_pipeline_cache
std::vector< PipelineEntry >	m_tracked_pipelines
std::vector< uint32_t >	m_free_slots
std::vector< vk::UniquePipelineLayout >	m_created_layouts

Detailed Description

Creates and owns graphics pipelines. Handles cleanup on destruction.

Constructor & Destructor Documentation

PipelineFactory() [1/2]

sd::PipelineFactory::PipelineFactory ( VkDevice  device, ShaderLibrary &  shaders  )

explicit

~PipelineFactory()

sd::PipelineFactory::~PipelineFactory ( )

default

PipelineFactory() [2/2]

sd::PipelineFactory::PipelineFactory ( const PipelineFactory &  )

delete

Member Function Documentation

create_graphics_pipeline()

PipelineFactory::Handle sd::PipelineFactory::create_graphics_pipeline	(	const PipelineDesc &	desc,
		VkPipelineLayout	layout
	)

Create a graphics pipeline and return a stable handle. The handle remains valid even after RecreateAllPipelines() is called.

create_pipeline_instance()

VkResult sd::PipelineFactory::create_pipeline_instance ( const PipelineDesc &  desc, vk::PipelineLayout  layout, vk::UniquePipeline *  pipeline  )

private

create_push_constant_layout()

VkPipelineLayout sd::PipelineFactory::create_push_constant_layout	(	VkShaderStageFlags	stages,
		u32	size
	)

destroy_pipeline()

void sd::PipelineFactory::destroy_pipeline

(

Handle

handle

)

Destroy a pipeline and invalidate its handle. Subsequent GetPipeline() calls will return VK_NULL_HANDLE.

get_pipeline()

VkPipeline sd::PipelineFactory::get_pipeline

(

Handle

handle

)

const

Get the current VkPipeline for a handle. Returns VK_NULL_HANDLE if handle is invalid or pipeline was destroyed.

is_valid()

bool sd::PipelineFactory::is_valid

(

Handle

handle

)

const

Check if a handle is valid (exists and generation matches).

operator=()

PipelineFactory & sd::PipelineFactory::operator= ( const PipelineFactory &  )

delete

recreate_all_pipelines()

std::vector< std::pair< std::string, std::string > > sd::PipelineFactory::recreate_all_pipelines

(

)

Recreates all tracked pipelines. Usually called after clearing ShaderLibrary cache. Handles remain valid - they resolve to the new pipeline instances.

Returns

Vector of failed shader path pairs (vert, frag) for any pipelines that failed to recreate.

Member Data Documentation

m_created_layouts

std::vector<vk::UniquePipelineLayout> sd::PipelineFactory::m_created_layouts

private

m_device

vk::Device sd::PipelineFactory::m_device

private

m_free_slots

std::vector<uint32_t> sd::PipelineFactory::m_free_slots

private

m_pipeline_cache

vk::UniquePipelineCache sd::PipelineFactory::m_pipeline_cache

private

m_shaders

ShaderLibrary& sd::PipelineFactory::m_shaders

private

m_tracked_pipelines

std::vector<PipelineEntry> sd::PipelineFactory::m_tracked_pipelines

private

null_handle

constexpr Handle sd::PipelineFactory::null_handle {0, 0}

staticconstexpr

---

The documentation for this class was generated from the following files:

• SD/include/SD/core/vulkan/PipelineFactory.hpp
• SD/src/core/vulkan/PipelineFactory.cpp
